Advantages and uses of ring groove rivets

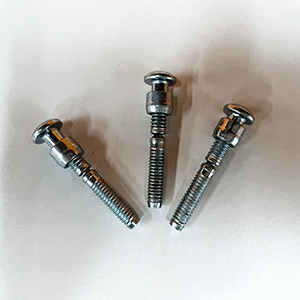

Ring groove rivets, also known as Huck nails, are a new type of fastener for blind riveting. They not only have the characteristics of blind rivets such as ease of use, high efficiency, low noise, and can reduce labor intensity, but also have the sealing properties of connectors. Well, the nail core of the closed rivet does not rust after riveting. Ring groove rivets are also called Hacker nails. According to the shape of the nail cap after riveting, different rivets can be divided into oblate head closed rivets, closed type oblate head blind rivets , and countersunk head closed rivets. Closed countersunk head blind rivets can be widely used in various fastening fields such as vehicles, ships, machinery manufacturing, electronic industry, instrumentation, food machinery, medical equipment, construction, and decoration projects.

Precautions for ring groove rivets

1. When riveting, the head of the riveting gun should be kept perpendicular to the surface of the workpiece, and sufficient pressure should be applied to make the nail sleeve close to the workpiece;

2. When riveting blind-type ring-groove nails, the power of the power part and the rivet head must comply with the standards and shape requirements of the rivets;

3. The action of inserting or driving the rivet into the hole must be light and steady;

4. When starting to rivet, push the head of the draw gun to the bottom and hold the draw gun firmly;

5. If the rivet head is not close to the component after riveting, it is never allowed to drive the nail head closer together;

6. When riveting steel ring groove nails, the pressure regulating valve of the pulling gun must be adjusted to the high pressure position;

7. When riveting head-type ring-groove nails, pay attention to selecting appropriate riveting bricks, otherwise the nail sleeve will not be able to be properly held;

8. Pay attention to prevent the nail rod from being bruised or damaging the workpiece due to the rebound of the gun when the nail rod is broken;

9. After making the holes, you must use a sandwich thickness gauge to detect the sandwich thickness of the riveted parts to select the appropriate rivet length.
